Refrigerant Gas Portable Laser Welding Machine

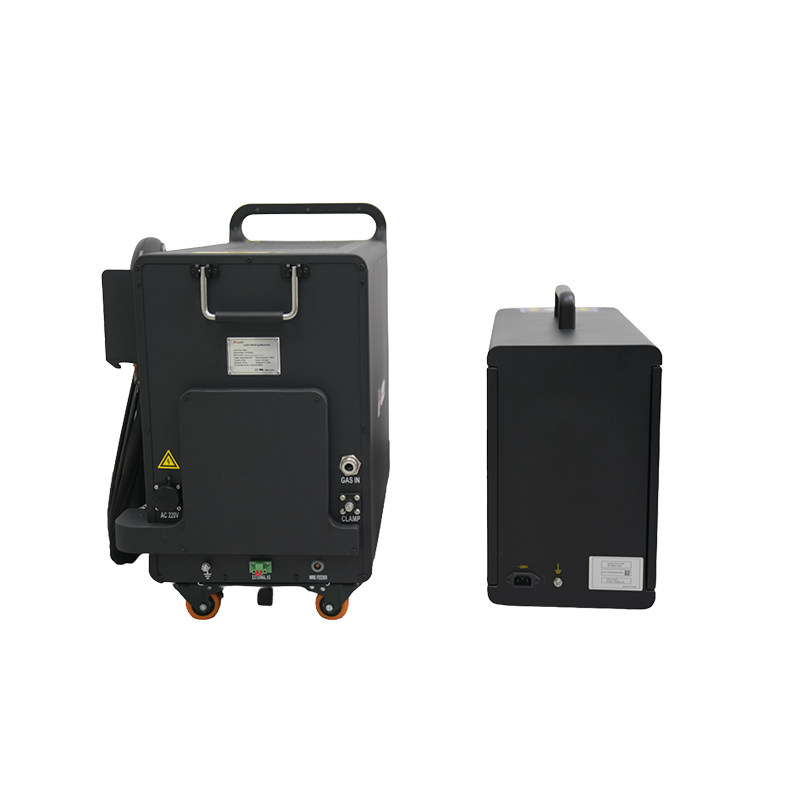

Refrigerant Handheld Laser Welding Machine (1222).jpg

Refrigerant handheld laser welding machine

Lightweld laser power 700W 900W 1200W 1500W 2000W 3000W refrigerant gas portable laser welding machine with wire feeder,”Small-core diameter” Laser Technology Smallcorefibershavebetterbeamqualityandhigherenergydensity under the same power.

Advantages and selling points of refrigerant portable laser welding machine

HS-HW series handheld laser welding machine is based on the independently developed “small core diameter” laser technology, and has become a unique product in the mainstream market with the refrigerant cooling system.The portable refrigerant laser welding machine utilizes a new dual-circuit refrigerant direct cooling system and an integrated structural design, offering customers high efficiency, deep penetration, energy savings, and exceptional convenience. This welder can weld a variety of metals, including aluminum, stainless steel, carbon steel, galvanized sheet, and brass. (Welders for special materials can be customized upon request.)

Higher Stability Ensures Round-the-clock Operation

The refrigerant direct cooling system independently developed by HS LASER is adopted, and the welding gun is made of thermal insulation material, which can ensure that the welding gun does not heat up or stop during long-term use, and can achieve 7×24 hours continuous welding.

Adopting Dual Circuit Refrigerant Direct Cooling Technology to Eliminate the Shortcomings of Traditional Air-cooled and Water-cooled Welder

Traditional water-cooled handheld welders operate in ambient temperatures between 5°C and 50°C, while air-cooled ones operate in ambient temperatures between -10°C and 35°C. STR's proprietary direct refrigerant cooling system ensures the handheld welder's excellent adaptability to ambient temperatures, extending its operating temperature range from -20°C to 60°C.

Adaptive Repair Process Package Ensures Life-cycle Reliability

HS Laser is the first in the industry to introduce an adaptive repair function for its process package. This function regularly self-checks the machine's status and performs parameter calibration, ensuring continued reliability throughout its lifecycle without compromising welding results.

Integrated Design of the Complete Set Ensures Higher Welding Efficiency Longer Service Life, and Lower Maintenance Costs

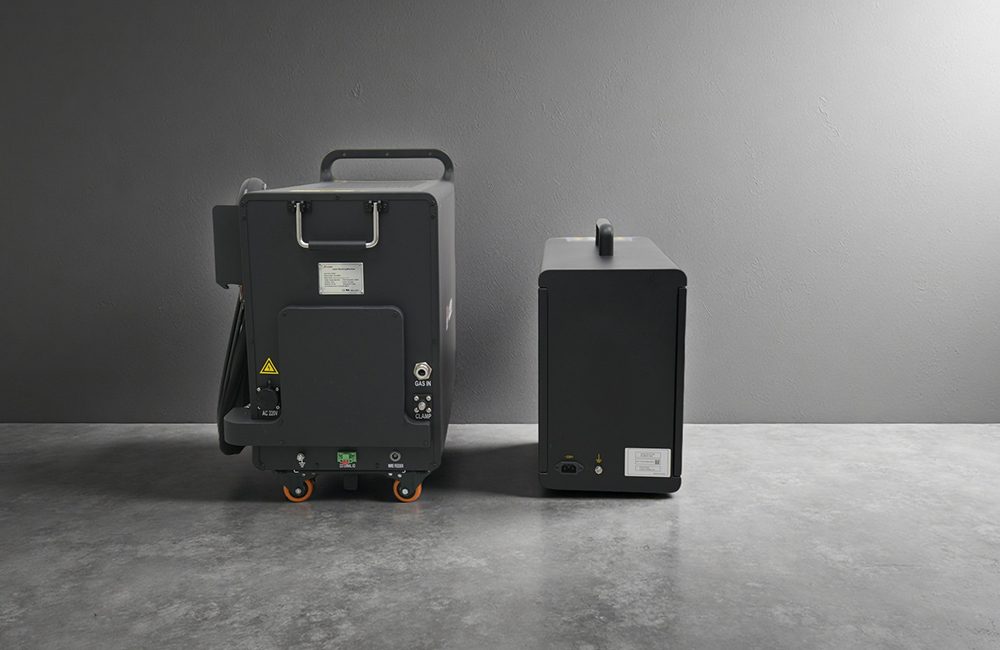

The entire welding machine features an integrated design, equipped with a proprietary welding gun and wire feeder. It also includes a built-in welding process package, enabling coordinated operation and smoother coordination between components. This series of welding machines is also the first in its class to feature an adaptive welding process package repair function, leading to higher work efficiency and a better welding experience.

Full Range Of Hs Hw Series Laser Welding Machines

HS LASER Refrigerant Portable Laser Welding Machine HS-HW Series

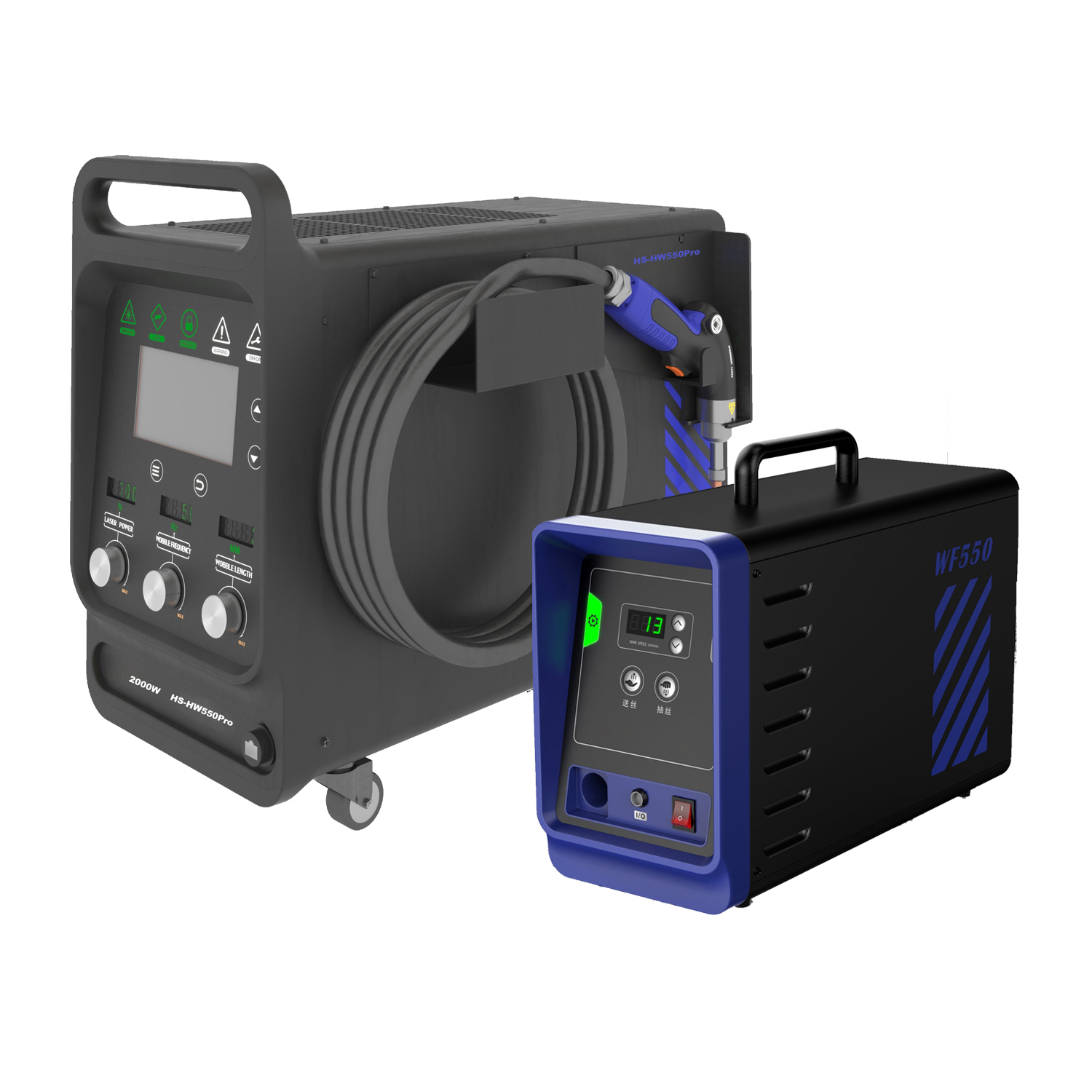

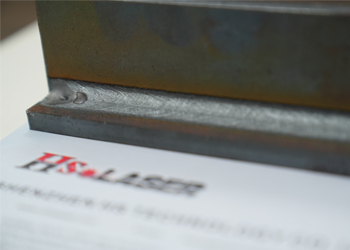

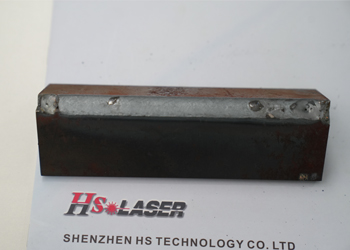

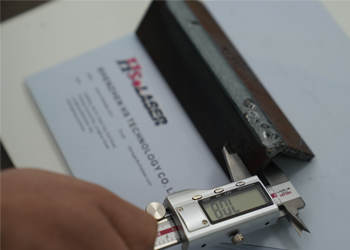

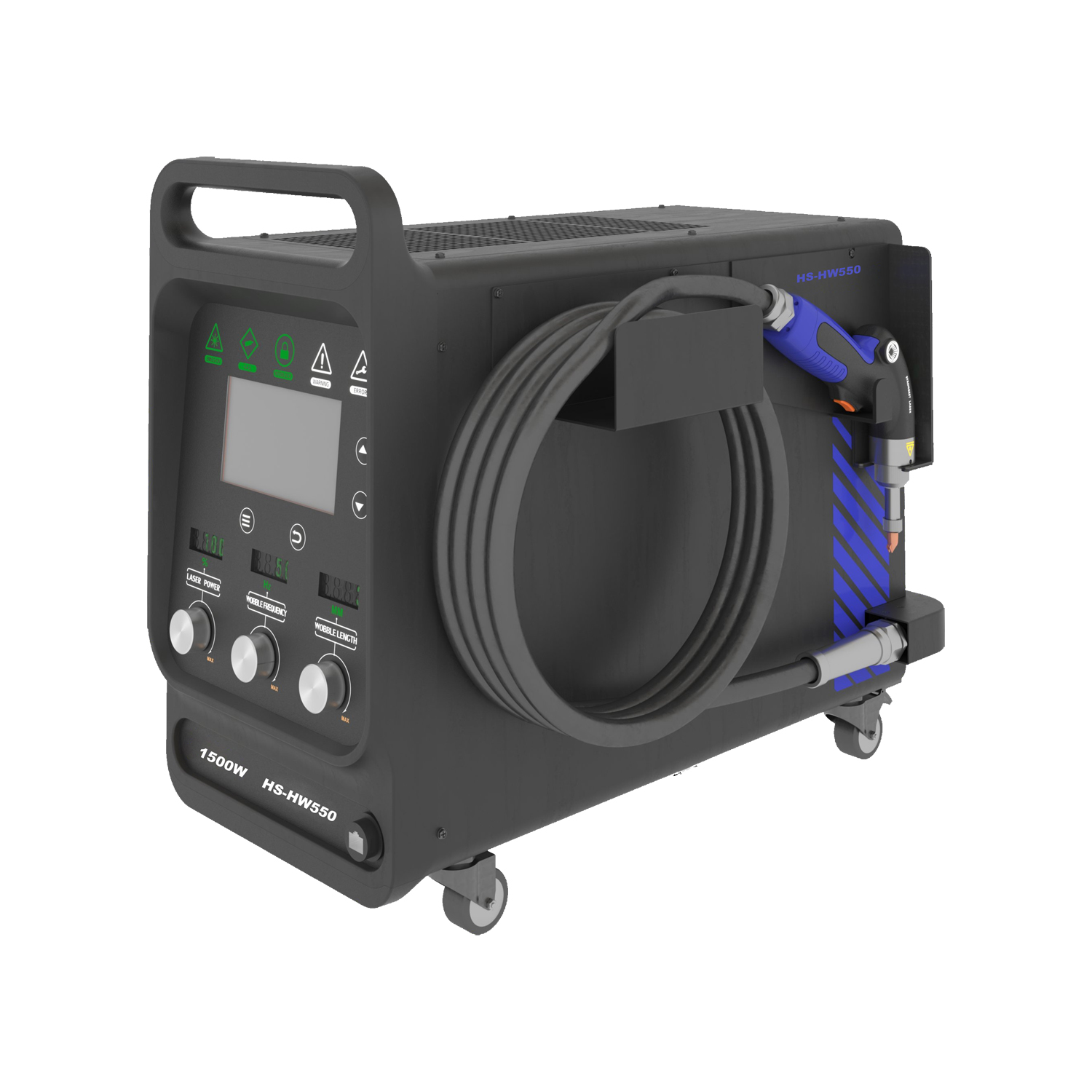

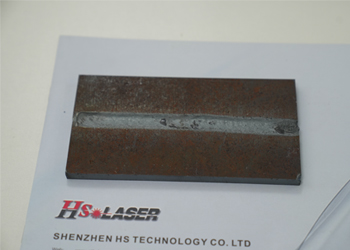

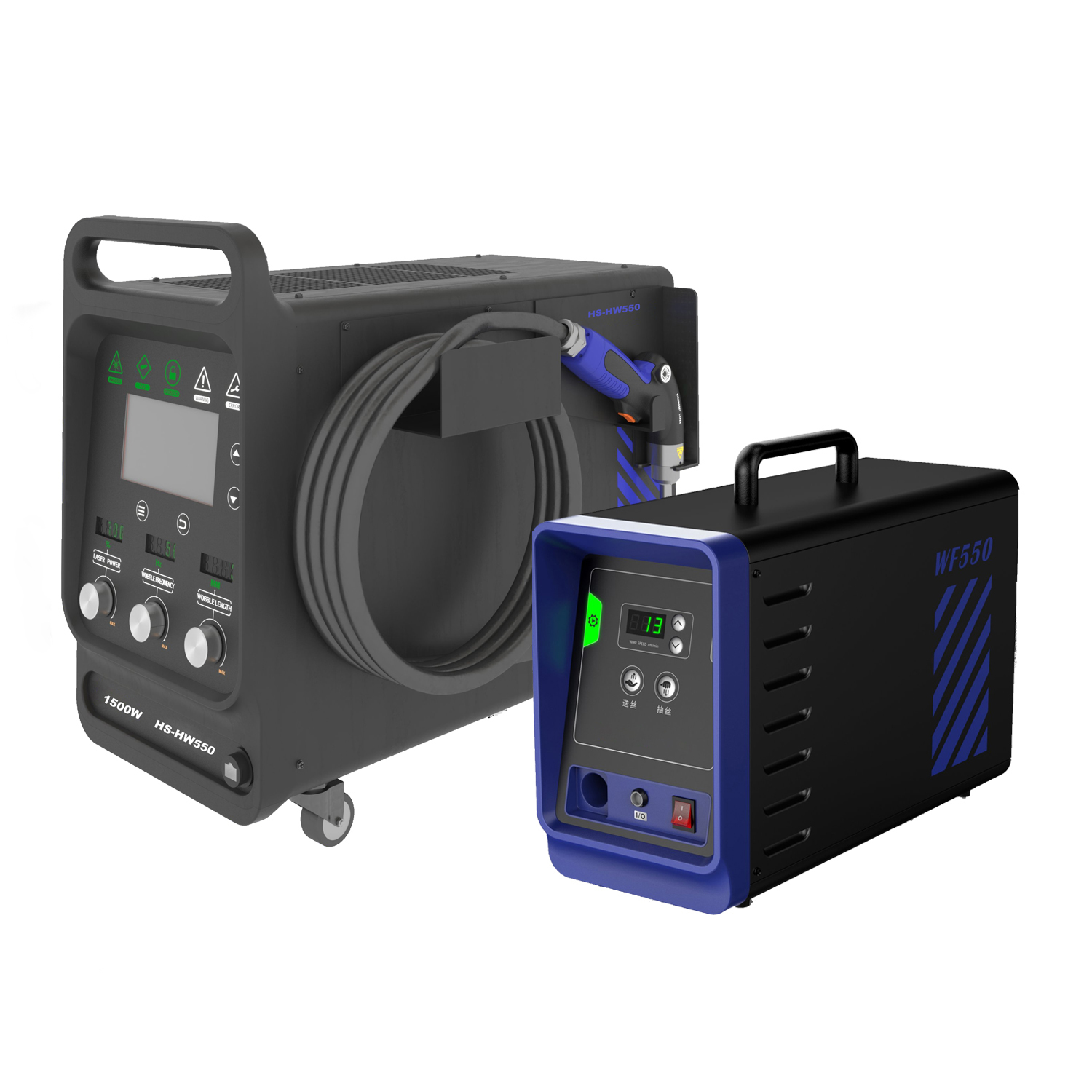

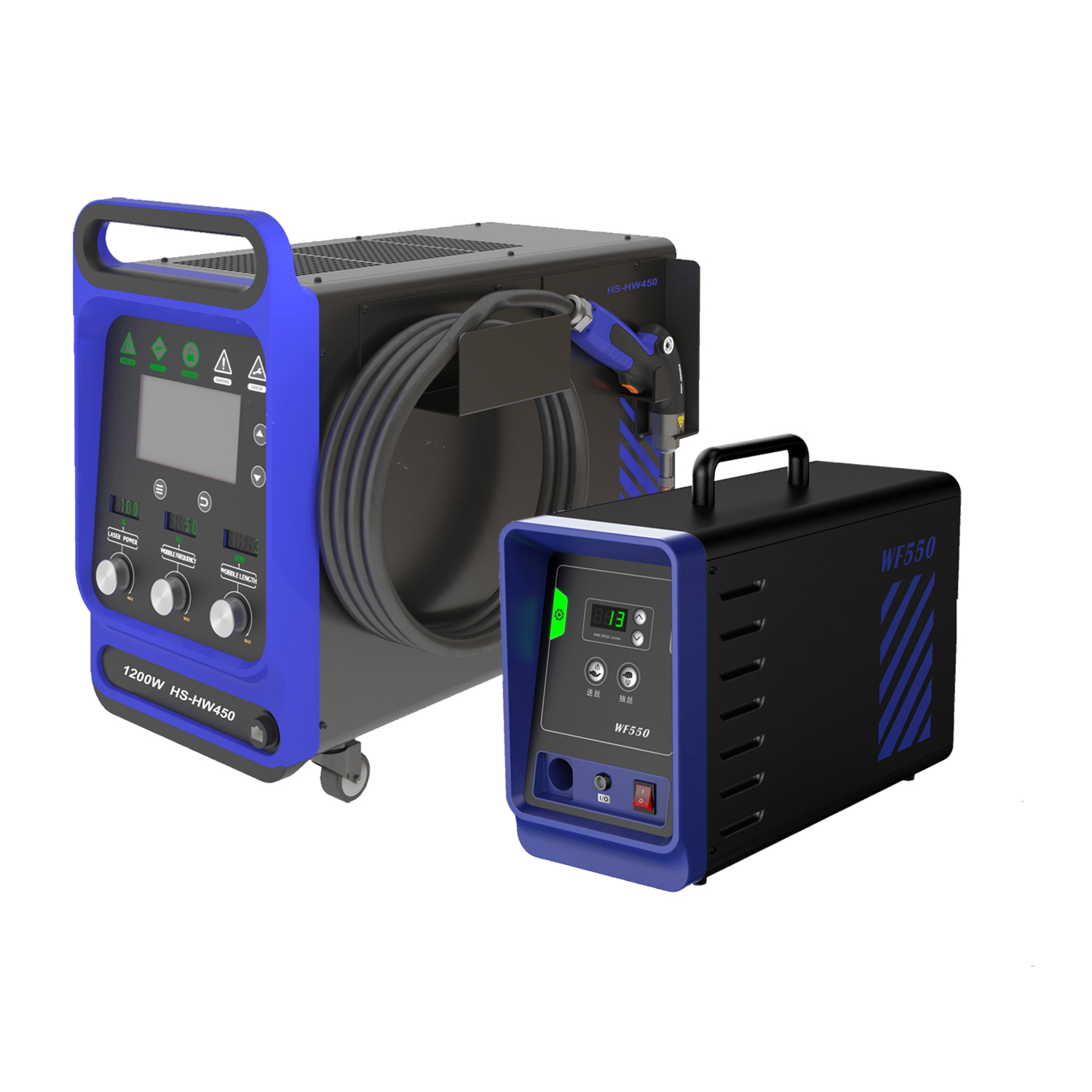

The power ratings for the HS-HW refrigerant laser welding machine models are: HS-HW200 700W | HS-HW350 900W | HS-HW450 1200W | HS-HW550 1500W | HS-HW550 Pro 2000W | HS-HWX80 3000W Because the refrigerant laser welding machine uses a small-core fiber, its welding power is twice as strong as air- and water-cooled systems. For example, HS-HW550PRO 2000W can weld 8mm stainless steel, carbon steel, 6mm aluminum, and 2mm copper.

HS-K20 2.0 Generation Laser Gun

The welding gun features a fully enclosed, integrated design without interfaces, eliminating the need for QBH or QCS. Provides a better welding experience: Reduced energy loss, high transmission efficiency, and excellent welding results; Reduced failure rate and extended service life; Uninterrupted operation even in harsh environments; Unique shielding gas output channel effectively suppresses spatter; Significantly reduced size and weight for longer, fatigue-free welding; Ergonomic design with a 120° handle angle for a comfortable grip and a wire feed angle of 50° to 60°. The laser gun measures 230 x 166 mm and weighs less than 600g

Trolley optional configuration The top of the trolley can hold a wire feeder, the bottom can hold a laser welding machine, and a standard 60L nitrogen bottle.

Standard accessory package for CMN torch

We also can provide laser welding machine safety protection device

HS-HW200 HS-HW350 HS-HW450 HS-HW550 with standard configuration OD6+ protective glasses,HS-HW550Pro and HS-HWX80 come with OD8+protective glasses

What safety protection device are option?

1.Laser Welding Helmet

2.Automatic blower laser protective helmet

3.Laser Safety Curtain

4.Laser Safety House

5.Laser Safety Screen

Technical Parameters
Model number: HS-HW200 \| HS-HW350 \| HS-HW450 \| HS-HW550 \| HS-HW550Pro \| HS-HWX80	Continuous light output time (S) :Light out 60S, stop light 6S
Laser power: 700W 900W 1200W 1500W 2000W 3000W	Operating Ambient temperature:Min.10 ,Max. 40
Laser type: fiber technology	Machine color:Blue / black
Laser wavelength: 1080nm	Wire feeder: option part
Fiber laser source: HS LASER	Wire feeder diameter:0.8mm 1.0mm 1.2mm
Weld head: HS LASER	Type of gas: Argon gas
fiber cable length: standard 5m	Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa
Welding head weigt:0.8kg	Operation Voltage:Mini AC 200 to 240V 5060 Hz \|3 phase 380V
Laser cooling method:Phase change heat dissipation	Input Power:6kw
Cooling method of tip:Inert gas cooling	Warranty period: 24 months
Weld speed: 0-120mm/s	Machine dimension: 667276542mm
Weld method:Flat / Horizontal /Vertical /Overhead	Package weight: 53kg
Weld mode system:CW	Package dimension:905485770mm
Output form : QCS integrated with the tip	Wire feeder weight and dimension 15kg and 613308465mm
